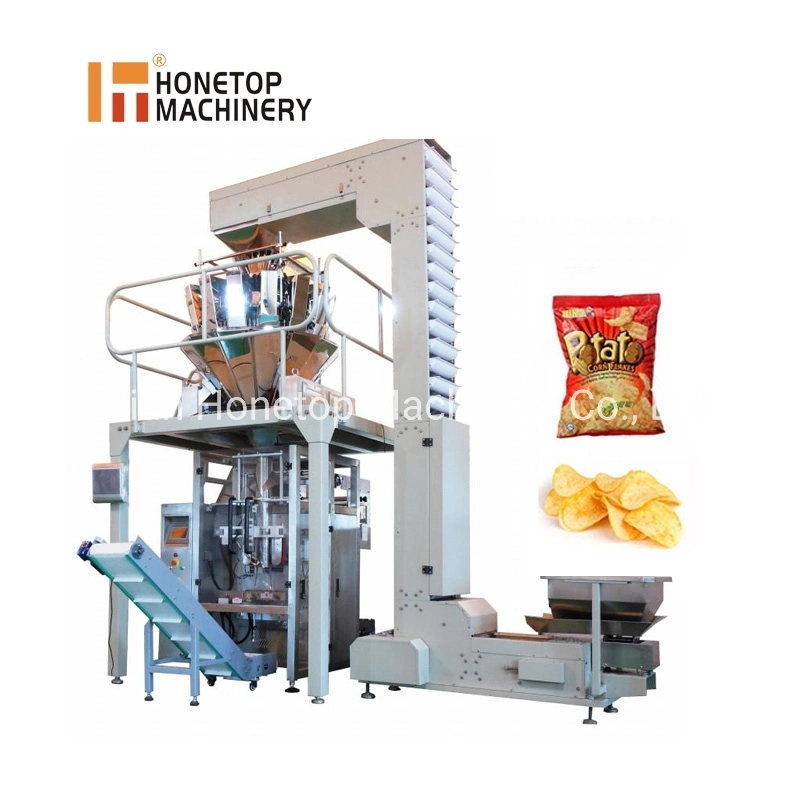

2kg -5kg automatic packaging equipment with Non-return Valve for coffee beans
HONETOP vertical packaging machine can be used to pack various solid and granule material: such as beans, puffed food, pet food, potato chips, dates, pistachios, rice, raisins, candy, peanuts, jelly, candied fruit, walnut, almonds, meat balls, sugar, salt, biscuits, frozen dumplings, chocolate etc.
Kinds of laminated material films
Pillow bags, pillow bags with bottom gusset, quad bags etc.
This vertical packaging machine conforms to the food processing machinery's sanitation standard. On the machine, the spare part which contacts the material and pouch conforms to the standard of food sanitation request on material processing, food health and security guarantee.
It's fully automated operation, is improved and the production of a kind of high quality, high performance automatic packaging machine, complete automatic feeding, measuring, bag-making, deviation, filling, sealing, date printing and finished product output and a series of automatic functions.
Characteristics of this machine:
1.Sever motor (Panasonic / Japan) drawing film , the tension membrane more accurate, faster, more accurate measurement.
2.PLC computer system (Panasonic / Japan), function is more stable , adjust it with any parameters.
3.Touch Screen (WEINVIEW / Taiwan): Chinese & English touch screen display, intuitive and simple operation.
4.Independent temperature control system, the precision can be up to + / - 1 degrees.
5.Horizontal and vertical sealing temperature control independently, suitable for all kinds of composite film, PE film packaging materials, etc.
6.Packaging style diversified, back sealing, gusset bag, continuous bags, punching, block bottom bag etc.
7.Simple and fast bag size changeover without tools.
8.Compact small size design, small footprint.
9.Easy to maintain-low maintenance.
10.Work environment quiet, low noise, saving energy.
Main Technical Parameter
| Model | HTL-520C |
| Packing Speed | 25-60bags/Min |
| Bag-making Size | (L)80-400mm, (W)80-250mm |
| Filling range | 10-2000g(Depend on The Filling Products) |
| Film width | 180-420mm |
| Max. Film Diameter | 350mm |
| Packing Material | All Kinds of Laminated Material |
| Film thickness | 0.04-0.08mm |
| Air Consumption | 0.36m3/min 0.6MPa |
| Power Supply | AC220V 50/60Hz 3.5kw |
| Machine Dimensions | (L)3500×(W)2500×(H)3700mm |
| Machine weight | 1600kg |
Product Details
1.Main VFFS Machine 1. It is used for turning the plastic roll film material into all kinds of packing bag. 2. Multiple bag types can be made by this machine, pillow bag, gusset bag, bag with hanging hole, four sides sealing bag and etc. 3. Main frame and food contact stainless steel 304. 4. English control panel, other languages can be customized. 5. Easy operation, stable, easy maintenance. 6. English manual and operation videos are provided. |
2.10 Head Weigher It is suitable for weighing snake food,roasted seeds & nuts,potato chips,biscuits,pasta,pet food......small block products. |
3.Z type Elevator 1. It drives the materials through chain transmission, for vertical transport of granule and small blocky materials, high lifting capacity and speed. 2. Vibration feeder: Vibration is relatively stable, able to adjust the feeding speed, wear a small long life. 3.Machine frame:SS304. 4. Bucket material: Food grade reinforced polypropylene. |
4.Platform 1.The material for platform: carbon steel or stainless steel 304 (If not specified, it's stainless steel 304) 2.It's mainly used to support the weighers, and it is also the general accessorial equipment in the packaging system. |
5.Ribbon Coding Printer Ribbon Coding Printer print max. 4 lines, each line has 16 characters;If not specified, it print max. 2 lines, each line has 12 characters. |
About us
1.Our company
Ruian Honetop Machinery Co., Ltd.
HONETOP MACHINERY has 17 experience years since 2002 in the packing industry, led to food flexible packaging machinery, is a professional design, development, production, trade integration in the packaging machine.
2.Our Clients
3.Our service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, how to use the machine.
* Engineers available to service machinery overseas.
Packaging & Shipping:
1.To oil machine and fix machine in the wooden tray avoid machine moving during shipment.
2.Use film to wrap whole machine avoid the seawater dropping on the machine.
3.To pack whole machine into wooden case avoid machine collision.
Certificate
FAQ:
We are a manufacturer, we have produced packaging machines for 17 years since 2012 .
Q: What's the guarantee of the machine?
We offer 2 years' guarantee of the machinery with 2 sets of free spare parts.
Q. How to operate machine when we get it?
1. You will get on line training service (video conference) with our professional engineer, if you want to operate by yourself.
2. We can send our engineer to your place, it needs 5-10 days, he will install the machine and train the workers how to run the machine well.
Q. How to repair or change when some parts are broken?
1. You have free spare parts in stock, can change or repair easily.
2. We use the famous brand parts (Siemens, Festo, Schneider etc), can get it from your local market.
Q. If machine has big problem, how we can do with it?
we have after sale department, our workers will on line 24 hours, you could communicate with us 24 hour by email, whatsapp, skype, wechat etc, or take photo, video for us.
Q: What is your terms of payment ?
It's flexible, we prefer 100% in advance as each payment will cost about USD35 bank charge, also we accept 30% deposit before production, 70% balance before shipment if cutomer need.
